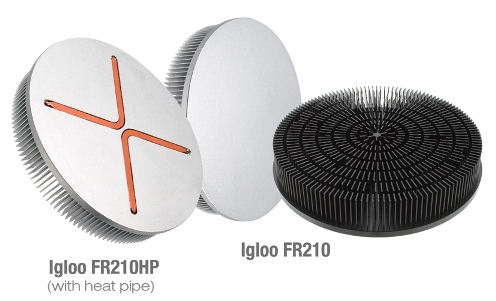

A technology manufacturer GlacialTech has launched two Thermal modules for Cold forging. These solutions are launched for 80W applications. The FR210HP is different from the Igloo FR210 which is optimized for the CoB and spotlight applications. Let us see the features of these modules.
Features
Both these modules are heat sinks which are available in the silver and black color options. These devices are 30W to 100W. The most suitable range for cold forging LED lighting solutions. The Cold Forging does produces heat sinks and have better heat dissipation and die-casting as per the company. Also aluminum extrusion can be done with ease. The aluminum and thermal conductivity can be increased 2.36x as compared to the die casting of 96.2 W/mK to 227 W/mK.
Also read : Kingston HyperX Fury White RAM Review
The company GlacialTech does provide thermal solutions to be designed with a focus on cost-effective performance. The weight and volume reduction is also done by the company in its solutions. The price, weight & volume performance are GlacialTech thermal design philosophies which can be done for LED lighting applications.
For our audience the benefits of cold forging are:
Better thermal conductivity then die-casting and aluminium extrusion
There is no extra assemble needed also it is one piece manufacturing.
Environmentally friendly production process
Smooth surface
These are the specifications of the forging solutions:
Type | Igloo FR210 | Igloo FR210HP |
Dimension (mm) | Ф 210×37 | Ф 210×37 |
Weight (g) | 1250 | 1230 |
Material | AL1050 | AL1050+2 Heat Pipes |
Color | Silver / Black | |
Surface Treatment | Anode | |
Crafts | Cold forging | |
Thermal resistance (°C / W)heat source DIM:37x37mm | 0.8187 | 0.7933 |
Surface area (mm^2) | 430308 |
We will keep you informed about such improved innovations in technology and new solutions introduced by companies.
